RELAY 0532.3747

PRODUCT REMOVED FROM MANUFACTURING



Switching relay 0532.3747
General information
Specifications
Dimensional drawing



General information:

Switching relay 0532.3747 is purposed for electrical switching of direct current with rated voltage 12V.

The given item is relay with switching contacts, suppression resistor, established parallel to winding and with metal bracket for fixation.

The relay is produced in a single climatic design О2.1 in accordance with GOST 15150 for internal market and for export. It is correspond to the IP44 in accordance with GOST 3940 by the level of protection from penetration of foreign bodies and water.

The warranty period of exploitation of relay is 3 years from the date of commissioning or from the date of sale in retail commercial network. The date of production is marked on the case of the item.
  up



Specifications:

Category temperature range, °С
-45 .. +100
  Rated voltage, V
12
  Rated load current, A
30
  Operate voltage under t°=(25+-3)°C, V, no more than
7,5

  up



Dimensional drawing:

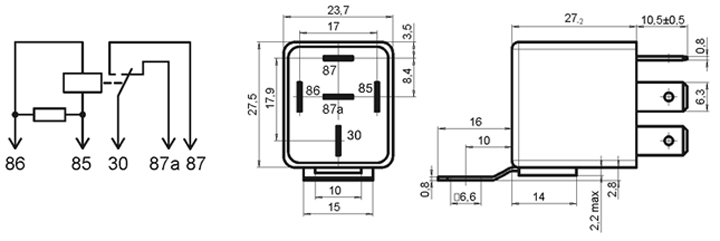

Dimensional drawing  of switching relay 0532.3747
