General information:

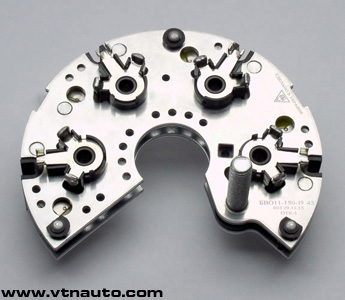

The restrictive rectifier unit BVO11-150-19 version 45 is purposed for rectification of the three-phase alternating current and limitation of the impulse of overvoltage in the system of auto electrical equipment composed of generator set.
Applicability: automobiles VAZ-1117, VAZ-1118, VAZ-1119 “Kalina” with alternator 9771.3701 complete with voltage regulator 9555.3702; “Daewoo Nexia”, “ZAZ Lanos” 1.5i, “Chevrolet Lanos”, “Chevrolet Aveo” with alternator 9751.3701 complete with voltage regulator 9464.3702.
BVO is produced in a single climatic design Î2.1 in accordance with GOST 15150 for internal market and for export. The operating mode of the alternator - S1 in accordance with GOST 3940.
The restrictive rectifier unit is mounted directly on the alternator, where the setting of rectifier units BVO11-150-19 version 45 with the help of standard fixture elements is stipulated.
The warranty period of exploitation is 3 years from the date of commissioning or from the date of sale in retail commercial network. The date of production is marked on the case of the item.
Specifications:
 |
Nominal voltage, V |
|
14,0
|
| |
Maximum rectified current, no more than, A |
150,0
|
| |
Power diodes voltage drop with to = (25±10)°Ñ and If =100A, no more than, V |
1,08
|
| |
The limiting voltage of power rectifier diodes, V |
20,0-24,0
|
| |
The quantity of power rectifier diodes, pcs |
8
|
| |
The quantity of additional rectifier diodes, pcs |
-
|
| |
The method of connection of the stator winding of the alternator |
soldering
|
|

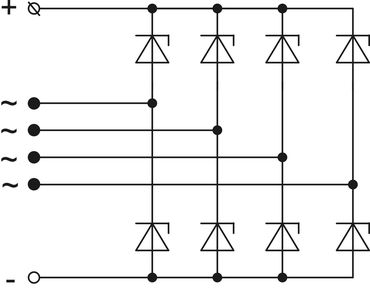

The scheme of restrictive rectifier unit:

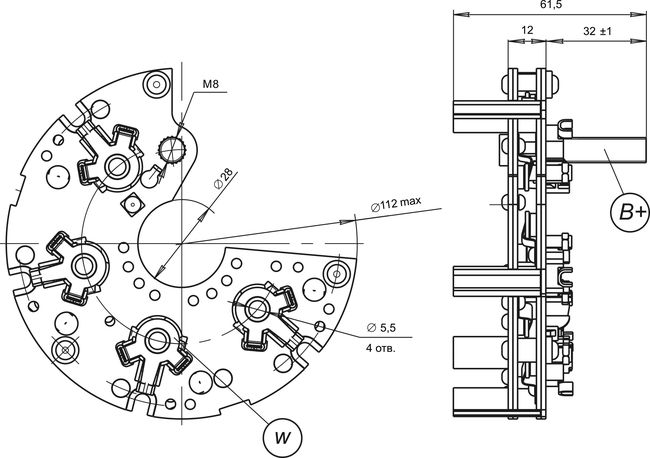

Dimensional drawing:
|
General information
