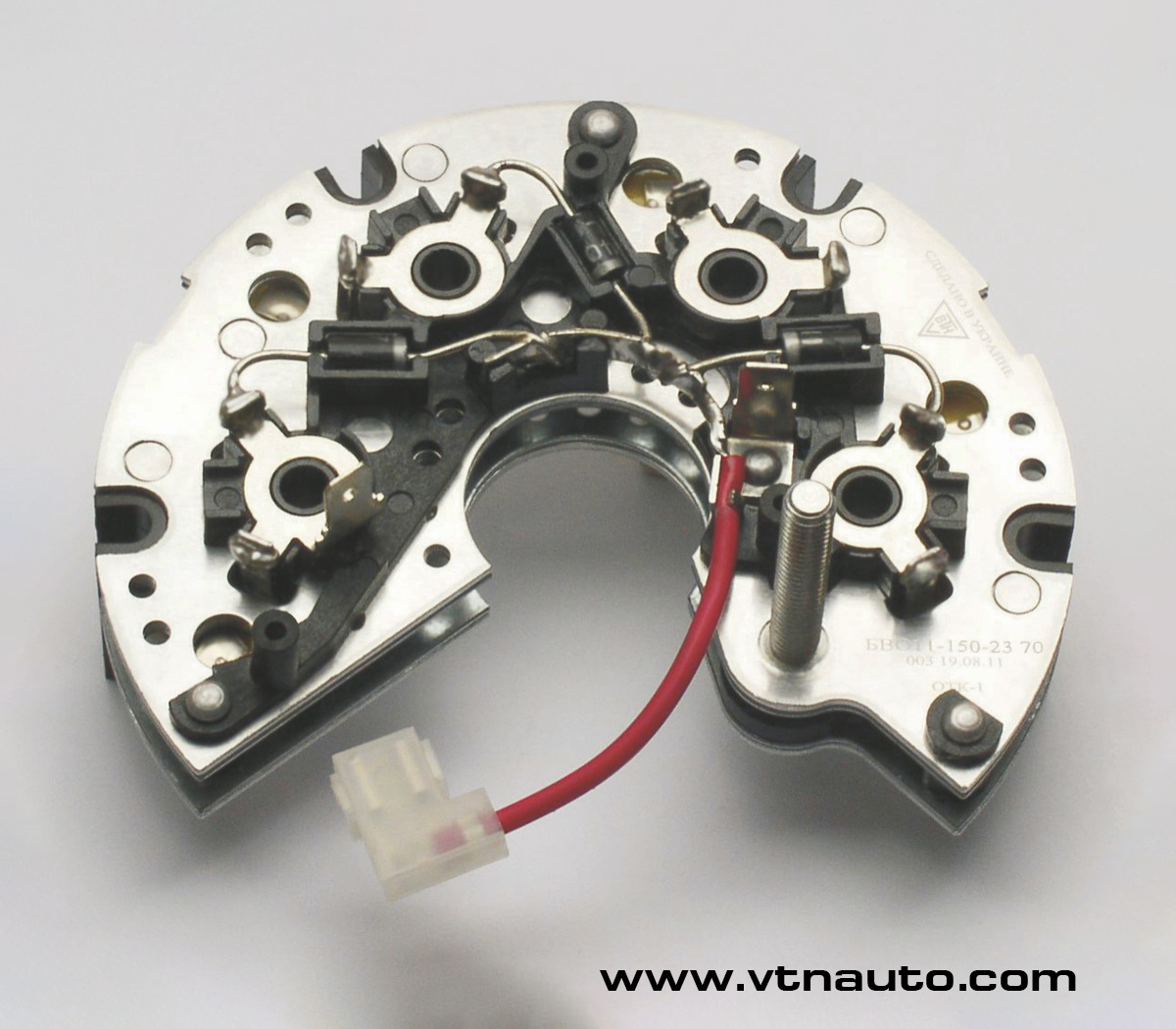

The restrictive rectifier unit BVO11-150-23.70 (БВО11-150-23.70) is purposed for rectification of the three-phase alternating current and limitation of the impulse of overvoltage in the system of auto electrical equipment composed of alternator set.
Application: automobiles MAZ with engines YaMZ-236, YaMZ-238, KAMAZ with engines KAMAZ-740 and others with alternator 3232.3771; MAZ with engines MMZ with an alternator 3232.3771-10; special machinery with engines MMZ with alternator 3232.3771-20 and others.

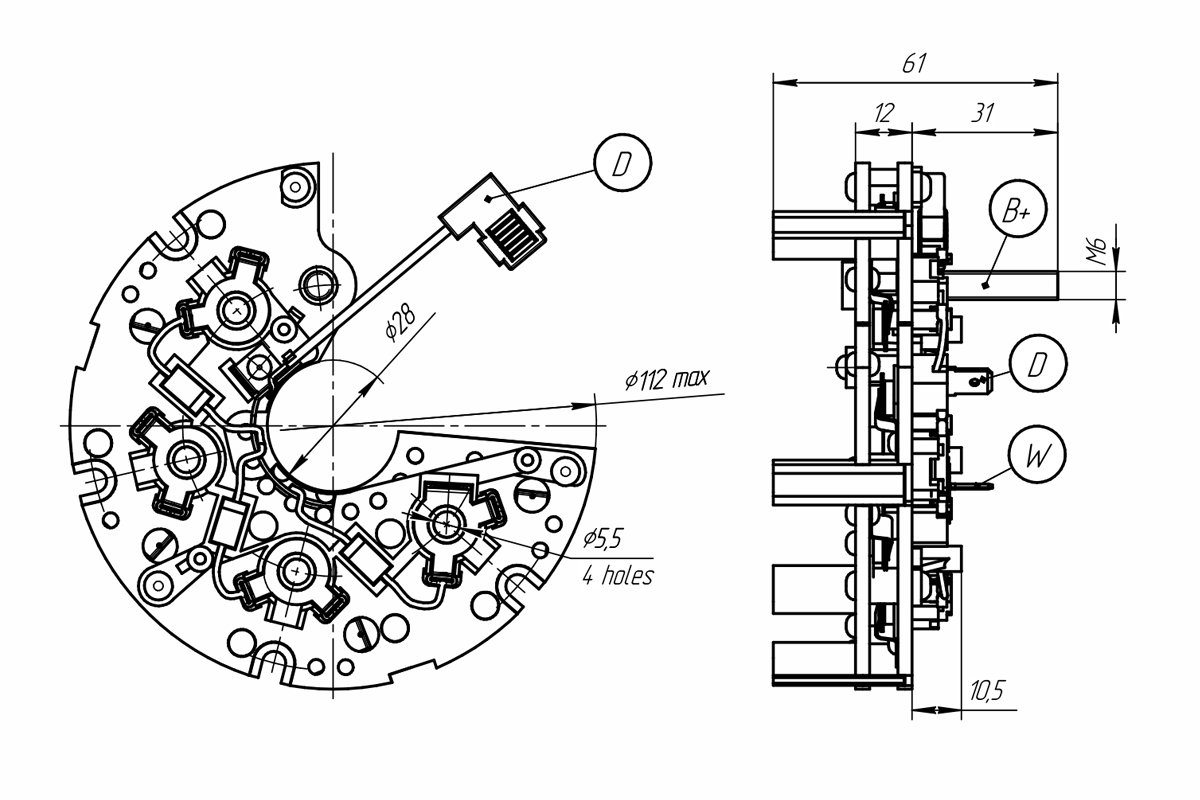

The restrictive rectifier unit BVO11-150-23.70 is produced with a pressed-in M6 output bolt.
BVO is produced in a single climatic design O2.1 in accordance with GOST 15150 for internal market and for export. The operating mode of the alternator – S1 in accordance with DSTU GOST 3940.
The restrictive rectifier unit is mounted directly on the alternator, where is stipulated the setting of rectifier units BVO7-110-02, BVO11-150-23, BVO11-150-23.54 or BVO11-150-23.70, with the help of standard fixture elements.
The warranty period of exploitation is 3 years from the date of commissioning or from the date of sale in retail commercial network. The warranty obligations of the manufacturer are valid during four years from the date of the item production. The date of production is marked on the case of the item housing.
|Maximum rectified current||
no more than 150 A
|Power diodes voltage drop with t°=(25 ± 10)°C and If=100 A||
no more than 1,08 V
|The limiting voltage of power rectifier diodes||
36 - 41 V
|The quantity of power rectifier diodes||
|The quantity of additional rectifier diodes||
|The method of connection of the stator winding||
|Pressed output bolt||
Circuit diagram of restrictive rectifier unit :
