Ignition controller 131.3734-11

General information:

The ignition controller 131.3734-11 is purposed for operation in breakerless ignition systems of automobiles GAZ, ZIL and others with magnetoelectric sensor that is with the ignition coil of type B116 without an additional resistor or any other with analogous parameters.

By functionality, method of mounting, connection with the automobile electrical circuit the given item does not differ from ignition controllers of type 131.3734, 90.3734, 94.3734.

The distinctive feature of the ignition controller 131.3734-11 is presence of function of multispark start that significantly facilitates engine start especially in winter time or with poor quality fuel. The construction and circuit design solutions in the given item are original having no analogues in the present time.

In the ignition controller 131.3734-11 is used a modern high-speed IGBT transistor that allows to guarantee reliability of the ignition system even at the most hard emergency modes. Due to quick action of the switching transistor was reached significant increase of a spark energy that allowed to receive high technical parameters and saving of the engine.

A long-term erroneous change of supply voltage polarity is permitted, thus is guaranteed absence of a current through the coil. In comparison with traditional ignition controllers* the engine operation is permitted at the disconnected battery, thus non-failure operation of the ignition controller is guaranteed.

A modern microcontroller is used for signal processing and control of the output key.

The ignition controller 131.3734-11 has an increased operating temperature range. Reliability and correspondence to specifications is guaranteed at the temperature of the ignition controller radiator up to 115°C.

An operating mode of the ignition controller is S1 in accordance with DSTU GOST 3940.

The ignition controller is mounted on a stipulated for it place in the vehicle with the help of standard fastenings and a standard plug thus it is necessary to ensure reliable contact between the radiator of ignition controller and the vehicle housing.

The warranty period of exploitation is 3 years from the date of commissioning or from the date of sale in retail commercial network. The warranty obligations of the manufacturer are valid during four years from the date of the item production. The date of production is marked on the case of the item housing.

Technical data:

Range of operating temperatures
from -40°C to +100°C
Nominal supply voltage
12 V
Permissible limits of power supply voltage
6 - 18 V
Range of uninterrupted sparking of the crankshaft of the 4-cycle 4-cylinder engine
20 - 7000 rpm
Commutating current
7,0 ± 0,2 A
Maximum allowable influence of increased power supply voltage up to 5 min. at the spark formation frequence more than 200 Hz (6000 rpm of the crankshaft of the 4-cycle 4-cylinder engine)
25 V
Maximum allowable pulse overvoltages of a positive and negative polarity
160 V

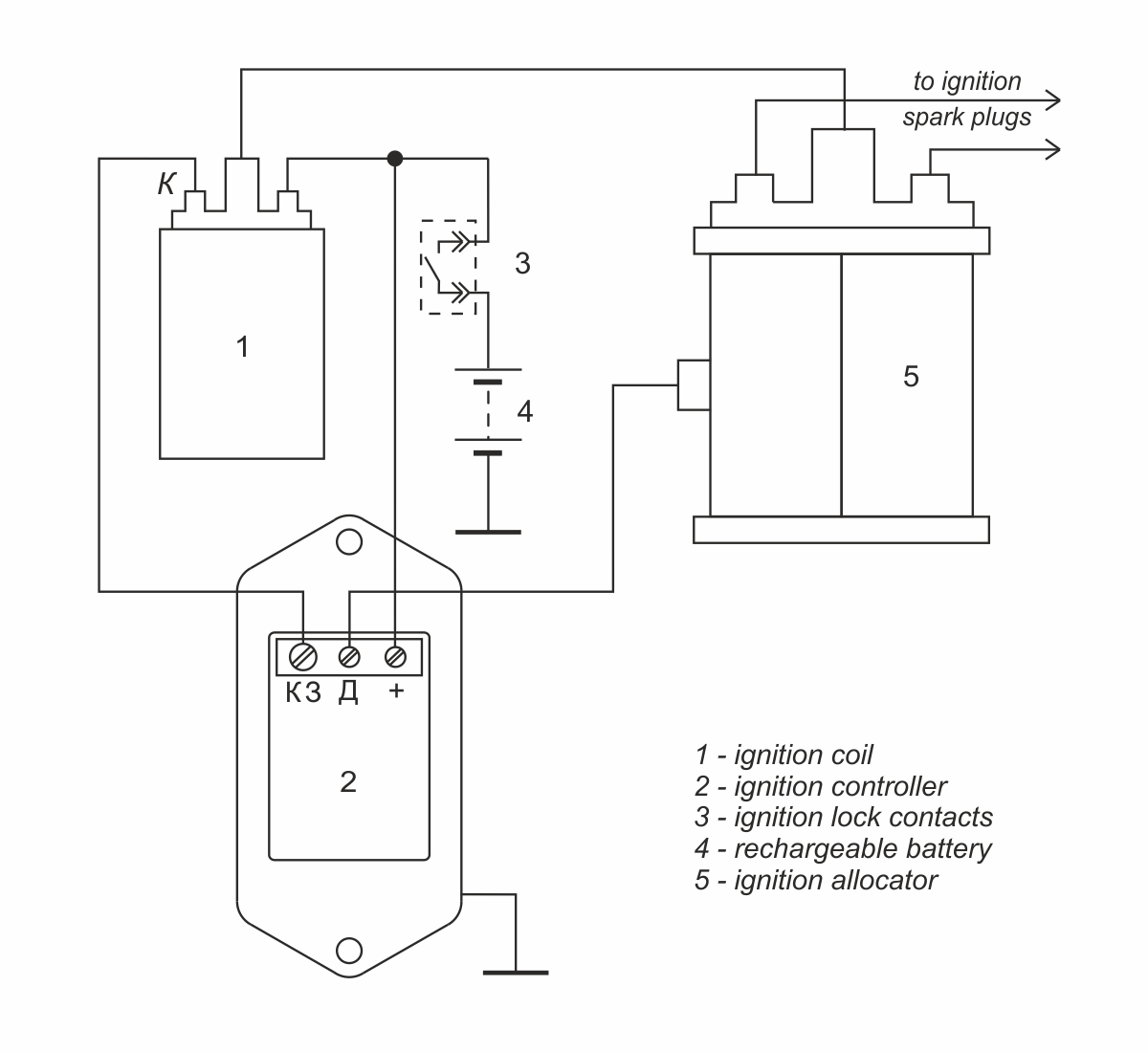

Connection diagram of ignition controller:

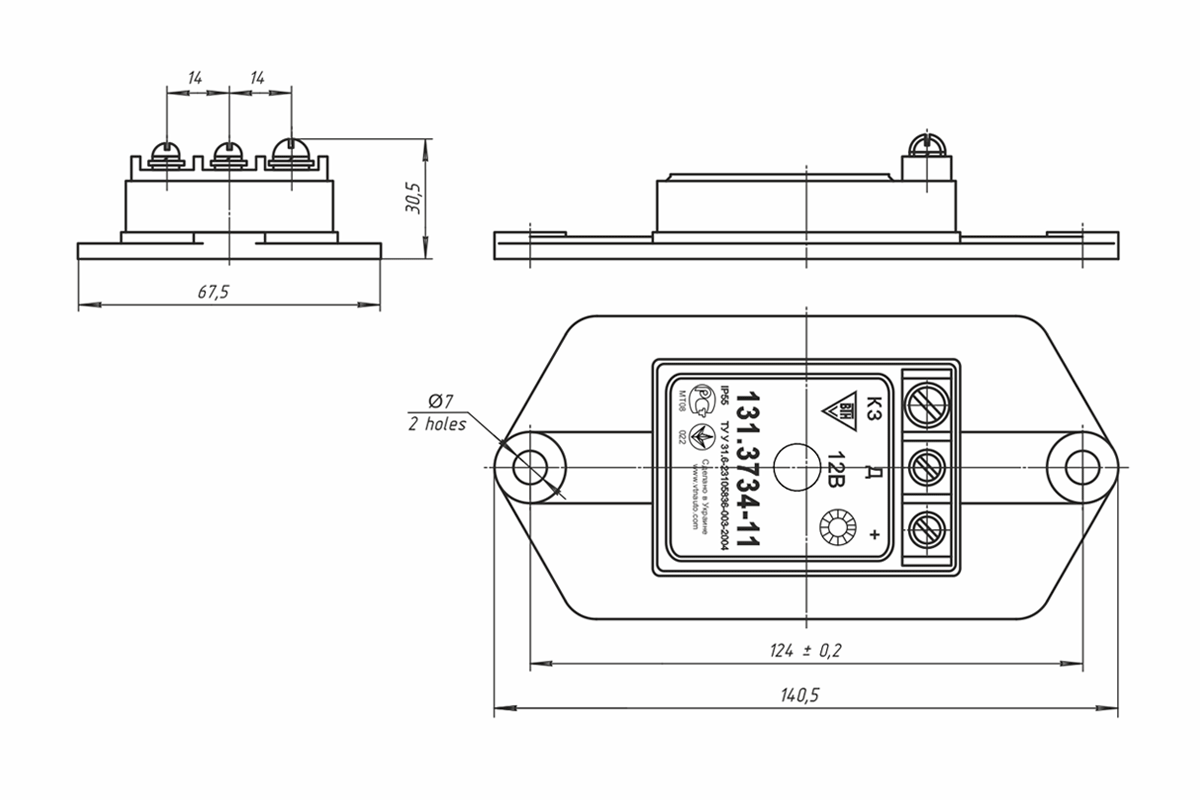

Dimensional drawing:

Dimensional drawing of ignition controller 131.3734-11
