IGNITION CONTROLLER 131.3734-11



Ignition controller 131.3734-11
General information
Specifications
Connection diagram
Dimensional drawing



General information:

The ignition controller 131.3734-11 is purposed for operation in breakerless ignition systems of automobiles GAZ, ZIL and others with magnetoelectric sensor that is with the ignition coil of type B116 without an additional resistor or any other with analogous parameters.

By functionality, method of mounting, connection with the automobile electrical circuit the given item does not differ from ignition controllers of type 131.3734, 90.3734, 94.3734.

The distinctive feature of the ignition controller 131.3734-11 is presence of function of multispark start that significantly facilitates engine start especially in winter time or with poor quality fuel. The construction and circuit design solutions in the given item are original having no analogues in the present time. For signal processing and output switch control is used a modern microcontroller.

In the ignition controller 131.3734-11 is used a modern high-speed IGBT transistor that allows to guarantee reliability of the ignition system even at the most hard emergency modes. Due to quick action of the switching transistor was reached significant increase of a spark energy that allowed to receive high technical parameters and saving of the engine.

A long-term erroneous change of supply voltage polarity is permited, thus is guaranteed absence of a current through the coil. In comparison with traditional ignition controllers* the engine operation is permited at the disconnected battery, thus non-failure operation of the ignition controller is guaranteed.

The ignition controller 131.3734-11 has an elevated operating temperature range. Reliability and correspondence to specifications is guaranteed at the temperature of the ignition controller radiator up to 115 °С.

An operating mode of the ignition controller is S1 in accordance with GOST 3940.

The ignition controller is mounted on a stipulated for it place in the vehicle with the help of standard fastenings and a standard plug thus it is necessary to ensure reliable contact between the radiator of ignition controller and the vehicle housing.

The warranty period of exploitation is 3 years from the date of commissioning or from the date of sale in retail commercial network. The warranty obligations of the manufacturer are valid during 4 years from the date of the item production.

  up



Specifications:

Range of operating temperatures, °С
-40 .. +100
  Nominal supply voltage, V
12,0
  Permissible limits of supply voltage, V
6,0 .. 18,0
  Range of an uninterrupted spark formation, rpm of the crankshaft of the 4-cycle 4-cylinder engine
20 .. 7000
  Commutating current, А
7,0 ± 0,2
  Time of a sparkless cutoff of a collector current, sec
1 .. 2
  Maximum allowable influence of the increased supply voltage up to 5 min. at the spark formation frequence more than 200 Hz (6000 rpm of the crankshaft of the 4-cycle 4-cylinder engine), V
25,0
  Maximum allowable pulse overvoltages of a positive and negative polarity, V
160,0

  up



Connection diagram:

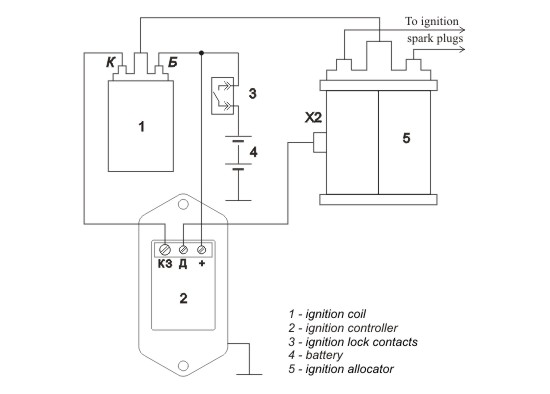

Connection diagram of the ignition controller 131.3734-11

  up



Dimensional drawing:

Dimensional drawing of the ignition controller 131.3734-11
