RESTRICTIVE RECTIFIER UNIT BVO11-150-08

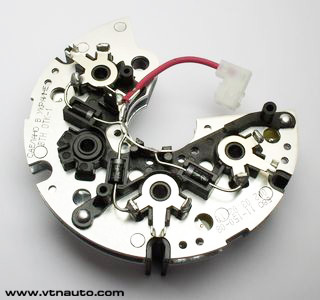

The restrictive rectifier unit BVO11-150-08
General information
Specifications
Connection diagram
Dimensional drawing



General information:

The restrictive rectifier unit BVO11-150-08 is purposed for rectification of the three-phase alternating current and limitation of the impulse of overvoltage in the system of auto electrical equipment composed of generator set.

Applicability: automobiles Daewoo Sens, Slavuta, Tavria after 2004 year of manufacture and others with alternator 97T.3701; VAZ-2108, VAZ-2109, VAZ-2110, VAZ-2111, VAZ-2112, VAZ-2113, VAZ-2114, VAZ-2115, VAZ-2121 and others with alternator 9402.3701, 3202.3771, G2112.

The restrictive rectifier unit BVO11-150-08 can be produced in version M with the pressed-in outlet bolt M6. Contract manufacturing of BVO with 4 bushes is possible.

BVO is produced in a single climatic design 2.1 in accordance with GOST 15150 for internal market and for export. The operating mode of the alternator - S1 in accordance with GOST 3940.

The restrictive rectifier unit is mounted directly on the alternator, where the setting of rectifier units BVO3-105-08, BVO11-150-07 or BVO11-150-01* with the help of standard fixture elements is stipulated.

The warranty period of exploitation is 3 years from the date of commissioning or from the date of sale in retail commercial network. The date of production is marked on the case of the item.

  up



Specifications:

Nominal voltage, V
14,0
  Maximum rectified current, no more than, A
120,0
  Power diodes voltage drop with to = (2510) and If =100A, no more than, V
1,08
  The limiting voltage of power rectifier diodes, V
20,0-24,0
  The quantity of power rectifier diodes, pcs
6
  The quantity of additional rectifier diodes, pcs
3
  The method of connection of the stator winding of the alternator
soldering

  up

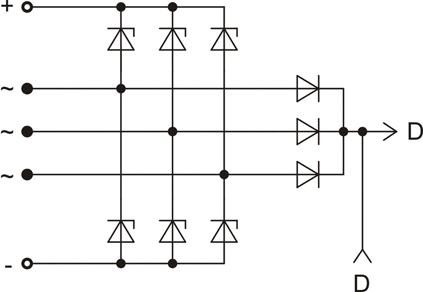

The scheme of restrictive rectifier unit:

The scheme of restrictive rectifier unit BVO11-150-08

  up

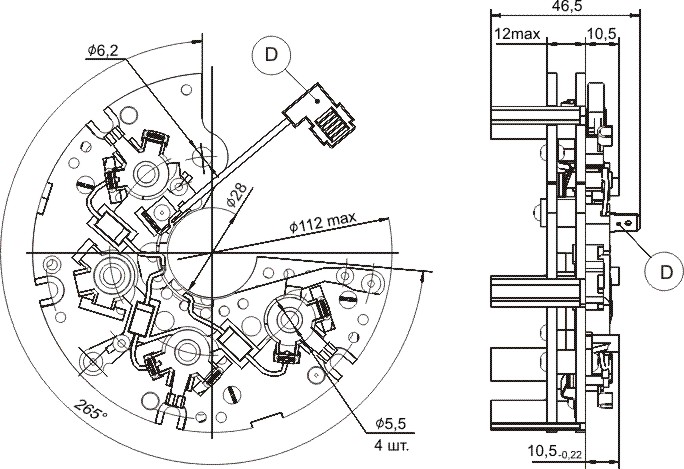

Dimensional drawing:

Dimensional drawing of restrictive rectifier unit BVO11-150-08
