General information:

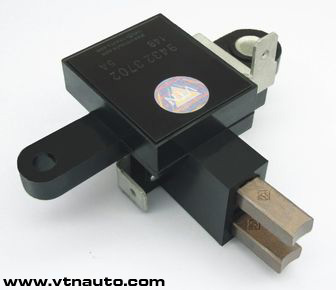

The voltage regulator 9432.3702 is purposed for voltage maintenance of the onboard vehicle network in predetermined limits in all system operation modes of electrical equipment at change of the rotation frequency of the alternator rotor, electrical load and environment temperature.

Applicability: serially on automobiles "Daewoo Lanos" 1.4i, "Daewoo Sens", "Slavuta", "Tavria", 2004-2009 years of manufacture with the alternator 97T.3701. It is possible to apply the regulator composed of other alternators with analogical switching circuit and restrictive rectifier unit.

The distinctive feature of this regulator is presence of the indication function of voltage excess of onboard vehicle network more than 15 V. At the exceeded voltage of the onboard vehicle network the regulator ensures indication of this mode by blinking with the frequency 2 Hz of a standard indicator lamp controlling the charging of battery on the instrument cluster.

The voltage regulator 9432.3702 is the regulators of a new generation. Due to usage of the modern powerful field-effect transistor as an output switch, the highest parameters of the current velocity characteristic are reached, the power losses are sharply lowered and the item reliability as a whole enlarged.

The regulators are produced in a single climatic design О2.1 in accordance with GOST 15150 for internal market and for export. On protection degree against penetration of foreign bodies and water, the items meet design IP68 in accordance with GOST 14254. An operating mode of the regulators is S1 in accordance with GOST 3940.

The warranty period of exploitation is 3 years from the date of commissioning or from the date of sale in retail commercial network. The warranty obligations of the manufacturer are valid during 4 years from the date of the item production. The date of production is marked on the case of the items.

  up



Specifications:

Range of operating temperatures, °С
-45 .. +100
  Nominal regulating voltage, V
14,0
  Regulating voltage with battery at t°=(25 ± 2) °С and load of alternator 3А, V
14,0 ± 0,1
  Regulating voltage with battery at t°=(25 ± 2) °С in range of alternator load from 3A to 0,9·Imax*, V
14,0 ± 0,2
  Maximum current of output circuit, A
5,0
  Thermal compensation of regulating voltage, mV/°С
-4,5 ± 1,5
  Residual voltage on output "DF": maximal / typical, V
0,06 / 0,05
Threshold of indication actuation of increased voltage, V
15,0 .. 15,5
Frequence of indication signal, Hz
2,0 ± 0,3
  Maximum allowable long-term influence of increased supply voltage, V
18,0
  Maximum allowable influence of increased supply voltage up to 5 min., V
25,0
  Maximum allowable pulse overvoltages in accordance with GOST 28751, V
200,0
* - According to the technical conditions on the item
  up



Connection diagram:

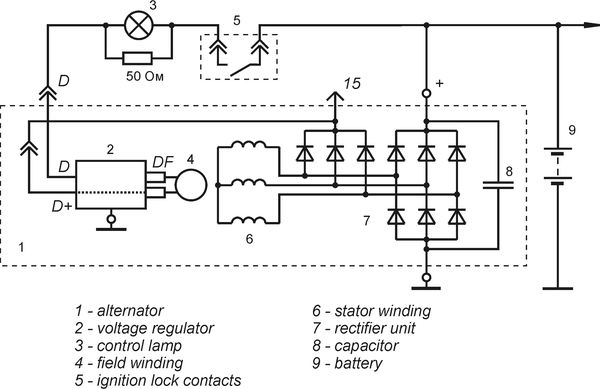

Connection diagram of the multifunctional voltage  9432.3702
