RESTRICTIVE RECTIFIER UNIT BVO11-150-12 version 21

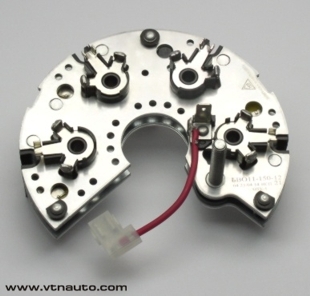

The restrictive rectifier unit BVO11-150-12 version 21
General information
Specifications
Connection diagram
Dimensional drawing



General information:

The restrictive rectifier unit BVO11-150-12 version 21 is purposed for rectification of the three-phase alternating current and limitation of the impulse of overvoltage in the system of auto electrical equipment composed of generator set.

Applicability: automobiles VAZ-2123 “Chevrolet Niva” with alternator 9772.3701 complete with voltage regulator 9333.3702-04.

BVO is produced in a single climatic design О2.1 in accordance with GOST 15150 for internal market and for export. The operating mode of the alternator - S1 in accordance with GOST 3940.

The restrictive rectifier unit is mounted directly on the alternator, where the setting of rectifier units BVO11-150-12 version 21 with the help of standard fixture elements is stipulated.

The warranty period of exploitation is 3 years from the date of commissioning or from the date of sale in retail commercial network. The date of production is marked on the case of the item.

  up



Specifications:

Nominal voltage, V
14,0
  Maximum rectified current, no more than, A
150,0
  Power diodes voltage drop with to = (25±10)°С and If =100A, no more than, V
1,08
  The limiting voltage of power rectifier diodes, V
20,0-24,0
  The quantity of power rectifier diodes, pcs
8
  The quantity of additional rectifier diodes, pcs
-
  The method of connection of the stator winding of the alternator
soldering

  up

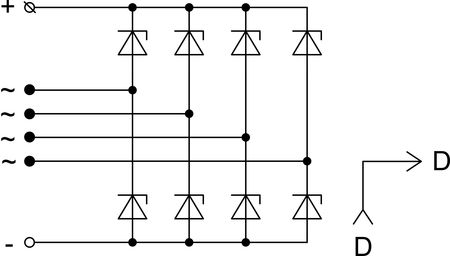

The scheme of restrictive rectifier unit:

The scheme of restrictive rectifier unit BVO11-150-12 version 21

  up

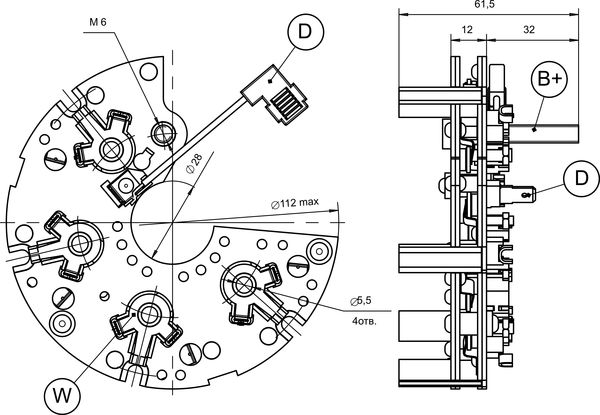

Dimensional drawing:

Dimensional drawing of restrictive rectifier unit BVO11-150-12 version 21

  up
