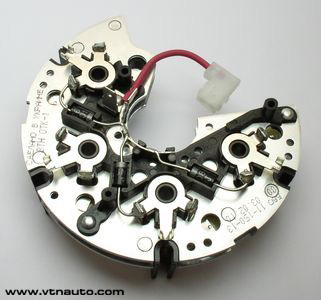

General information:
The restrictive rectifier unit BVO11-150-13 is purposed for rectification of the
three-phase alternating current and limitation of the impulse of overvoltage in the system
of auto electrical equipment composed of generator set.
Applicability: automobiles VAZ-2110, VAZ-2111, VAZ-2112 and others with alternator
977.3701, “Daewoo Sens” and others with alternator 97S.3701, automobiles UAZ with the
engine UMZ-4213, -4219, GAZ with the engine UMZ-4216 with the alternator 3282.3771 and
others.
The restrictive rectifier unit BVO11-150-13 can be produced in version “M” with the
pressed-in outlet bolt.
BVO is produced in a single climatic design О2.1 in accordance with GOST 15150 for
internal market and for export. The operating mode of the alternator - S1 in accordance
with GOST 3940.
The restrictive rectifier unit is mounted directly on the alternator, where the setting
of rectifier units BVO3-105-06 or BVO3-105-09 with the help of standard fixture elements
is stipulated. For the reduction of transient junction resistance of alternator power
circuits the stator winding is connected to the unit by soldering.
The warranty period of exploitation is 3 years from the date of commissioning or from the
date of sale in retail commercial network. The date of production is marked on the case of
the item.
Specifications:
 |
Nominal voltage, V |
 |
14,0
|
|
Maximum rectified current, no more than, A
|
150,0
|
|
Power diodes voltage drop with to =
(25±10)°С and If =100A, no more than, V |
1,08
|
|
The limiting voltage of power rectifier
diodes, V |
20,0-24,0
|
|
The quantity of power rectifier diodes, pcs
|
8
|
|
The quantity of additional rectifier diodes,
pcs |
3
|
|
The method of connection of the stator
winding of the alternator |
soldering
|
|

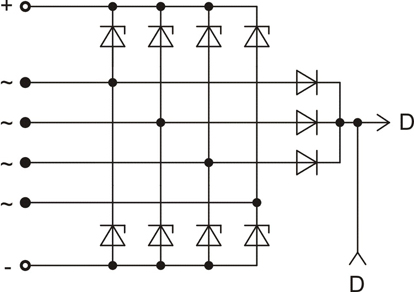

The scheme of restrictive rectifier unit:

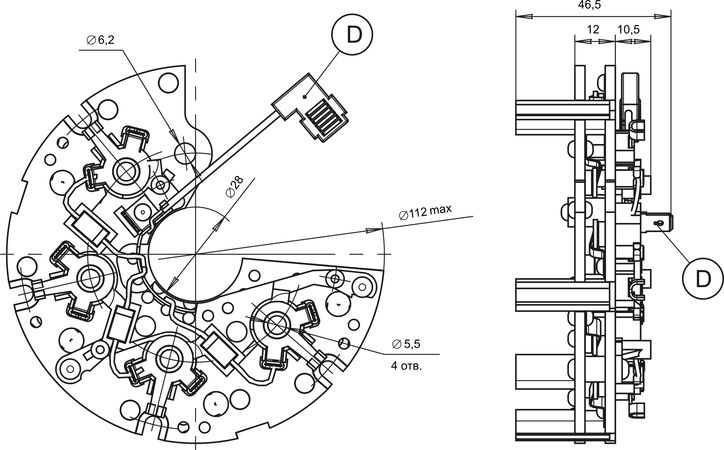

Dimensional drawing:
|
