General information:

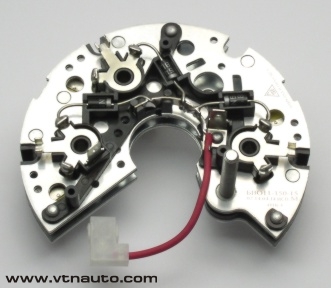

The restrictive rectifier unit BVO11-150-15M is purposed for rectification of the
three-phase alternating current and limitation of the impulse of overvoltage in the system
of auto electrical equipment composed of generator set.
Applicability: automobiles GAZ with engines ZMZ-405, -406, -409 with alternators
9422.3701, А125/14/-14V-90A and others.
The restrictive rectifier unit BVO11-150-15M is produced with the pressed-in outlet
bolt.
BVO is produced in a single climatic design О2.1 in accordance with GOST 15150 for
internal market and for export. The operating mode of the alternator - S1 in accordance
with GOST 3940.
The restrictive rectifier unit is mounted directly on the alternator, where the setting
of rectifier units BVO3-105-03, BVO11-150-15 or BVO11-150-15M with the help of standard
fixture elements is stipulated. To reduce the transient junction resistance of alternator
power circuits the stator windings are connected to the unit by soldering.
The warranty period of exploitation is 3 years from the date of commissioning or from the
date of sale in retail commercial network. The date of production is marked on the case of
the item.
Specifications:
 |
Nominal voltage, V |
|
14,0
|
| |
Maximum rectified current, no more than, A
|
120,0
|
| |
Power diodes voltage drop with to =
(25±10)°С and If =100A, no more than, V |
1,08
|
| |
The limiting voltage of power rectifier
diodes, V |
20,0-24,0
|
| |

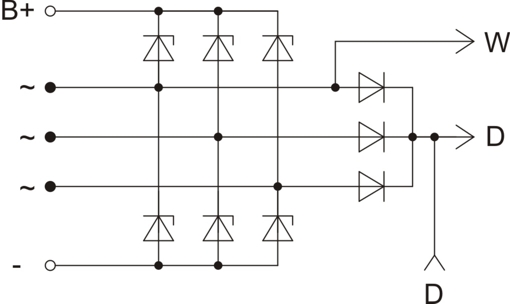

The quantity of power rectifier diodes, pcs
|
6
|
| |
The quantity of additional rectifier diodes,
pcs |
3
|
| |
The method of connection of the stator
winding of the alternator |
soldering
|
|
Specifications:

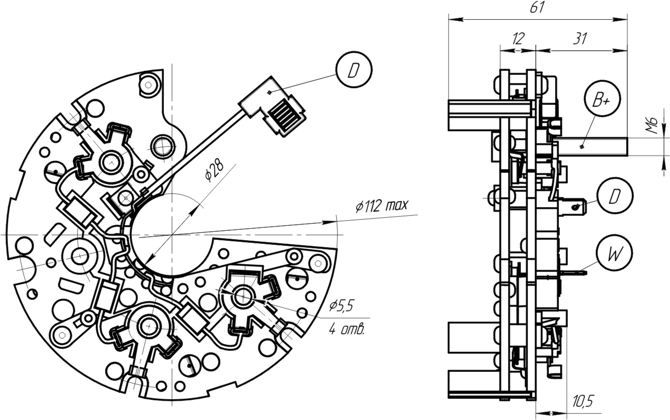

Dimensional drawing:
|
