RESTRICTIVE RECTIFIER UNIT BVO11-150-16

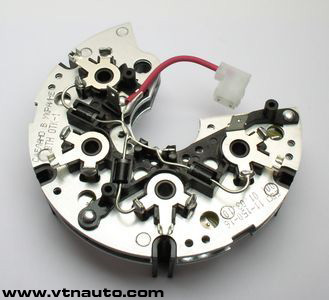

The restrictive rectifier unit BVO11-150-16
General information
Specifications
Connection diagram
Dimensional drawing



General information:

The restrictive rectifier unit BVO11-150-16 is purposed for rectification of the three-phase alternating current and limitation of the impulse of overvoltage in the system of auto electrical equipment composed of generator set.

Applicability: automobiles GAZ, UAZ with the engine ZMZ-405, ZMZ-406, ZMZ-409 with alternator 3212.3771 and others.

The restrictive rectifier unit BVO11-150-16 can be produced in version “M” with the pressed-in outlet bolt M6.

BVO is produced in a single climatic design О2.1 in accordance with GOST 15150 for internal market and for export. The operating mode of the alternator - S1 in accordance with GOST 3940.

The restrictive rectifier unit is mounted directly on the alternator, where the setting of rectifier units BVO11-150-16 or BVO3-105-02* with the help of standard fixture elements is stipulated. For the reduction of transient junction resistance of alternator power circuits the stator winding is connected to the unit by soldering.

The warranty period of exploitation is 3 years from the date of commissioning or from the date of sale in retail commercial network. The date of production is marked on the case of the item.

  up



Specifications:

Nominal voltage, V
14,0
  Maximum rectified current, no more than, A
150,0
  Power diodes voltage drop with to = (25±10)°С and If =100A, no more than, V
1,08
  The limiting voltage of power rectifier diodes, V
20,0-24,0
  The quantity of power rectifier diodes, pcs
8
  The quantity of additional rectifier diodes, pcs
3
  The method of connection of the stator winding of the alternator
soldering

  up



The scheme of restrictive rectifier unit:

The scheme of restrictive rectifier unit BVO11-150-16

  up

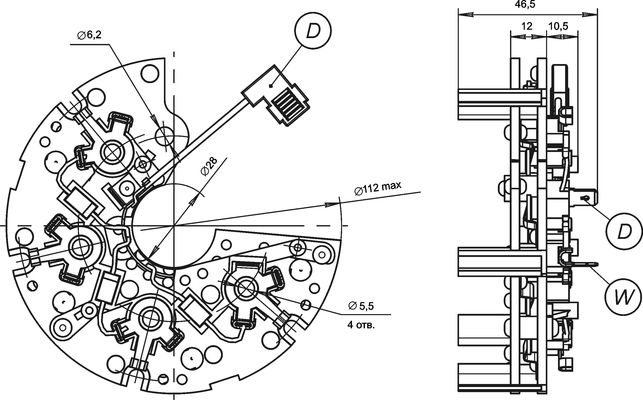

Dimensional drawing:

Dimensional drawing of restrictive rectifier unit BVO11-150-02
