RESTRICTIVE RECTIFIER UNIT BVO11-150-18 version 41

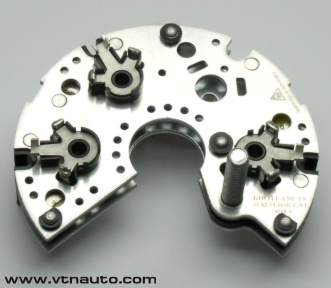

The restrictive rectifier unit BVO11-150-18 version 41
General information
Specifications
Connection diagram
Dimensional drawing



General information:

The restrictive rectifier unit BVO11-150-18 version 41 is purposed for rectification of the three-phase alternating current and limitation of the impulse of overvoltage in the system of auto electrical equipment composed of generator set.

Applicability: automobiles VAZ-1117, -1118, -1119 "Kalina", VAZ-2170, -2171, -2172 “Priora” with alternator for VAZ-2110-15 (line 94хх.3701 with the slight modifying of alternator’s cover) complete with voltage regulator 9555.3702.

BVO is produced in a single climatic design О2.1 in accordance with GOST 15150 for internal market and for export. The operating mode of the alternator - S1 in accordance with GOST 3940.

The restrictive rectifier unit is mounted directly on the alternator, where the setting of rectifier units BVO11-150-18 version 41 with the help of standard fixture elements is stipulated.

The warranty period of exploitation is 3 years from the date of commissioning or from the date of sale in retail commercial network. The date of production is marked on the case of the item.

  up



Specifications:

Nominal voltage, V
14,0
  Maximum rectified current, no more than, A
120,0
  Power diodes voltage drop with to = (25±10)°С and If =100A, no more than, V
1,08
  The limiting voltage of power rectifier diodes, V
20,0-24,0
  The quantity of power rectifier diodes, pcs
6
  The quantity of additional rectifier diodes, pcs
-
  The method of connection of the stator winding of the alternator
soldering

  up

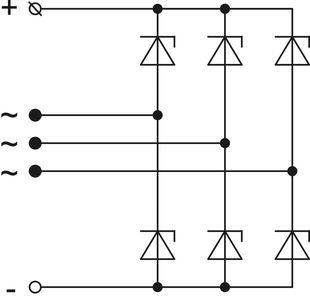

The scheme of restrictive rectifier unit:

The scheme of restrictive rectifier unit BVO11-150-18 version 41

  up

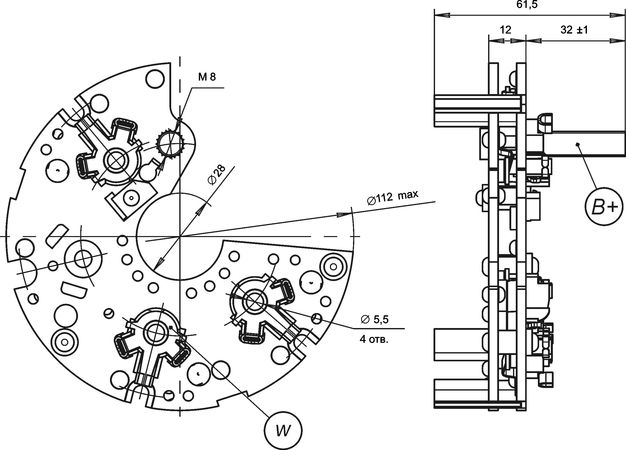

Dimensional drawing:

Dimensional drawing of restrictive rectifier unit BVO11-150-18 version 41

  up
