General information:
Automobile alternator 1119.3701 is purposed for provision
of the customers with electric power in different mode of
operations of the engine of the automobiles VAZ-1117, VAZ-1118,
VAZ-1119, "Kalina".
Alternator 2112.3701 is performed in compact constructive
performance. The direction of rotation of the shaft of generator
from the drive side is right. Alternator is produced in a
single climatic design О2.1 in accordance with GOST 15150
for internal market and for export. The operating mode of
the alternator - S1 in accordance with GOST 3940.
The warranty period of exploitation is 1 years from the date
of commissioning or from the date of sale in retail commercial
network. The date of production is marked on the case of the
item.
Specifications:
|
Rated voltage,
V |
|
14,0
|
| |
Maximum rectified current, no more
than, A |
85,0
|
| |
Power capacity,
kW |
1,19
|
| |
Mass, no more than,
kg |
4,8
|
|

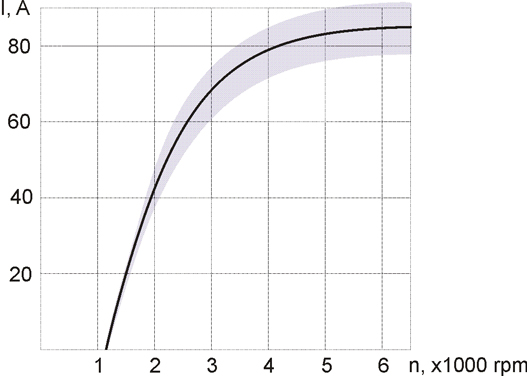

Speed current characteristic of
the generator set:
Dimensional drawing:
|
