Voltage regulator JA112V1SCH
General information
Specifications
Connection diagram
Dimensional drawing



General information:

The voltage regulator JA112V1SCH is purposed for voltage maintenance of the onboard vehicle network in predetermined limits in all system operation modes of electrical equipment at change of the rotation frequency of the alternator rotor, electrical load and environment temperature.

Applicability: automobiles VAZ-2104, VAZ-2105, VAZ-2107, "Tavria" before 1991 year of manufacture and others with alternators, in which brush units with the voltage regulators JA112V/JA112V1 are applied.

The given item is developed specially for exploitation in various latitudes with a large range of environment temperature. The regulator is produced in a single climatic design О2.1 in accordance with GOST 15150 for internal market and for export. On extent of protection against penetration of foreign bodies and water, the item meets design IP68 in accordance with GOST 14254. An operating mode of the regulator is S1 in accordance with GOST 3940.

The regulator is mounted on a stipulated for it place in alternator istead of the brush unit and is fixed with the help of fastenings, which are supplied.

The warranty period of exploitation is 3 years from the date of commissioning or from the date of sale in retail commercial network. The warranty obligations of the manufacturer are valid during 4 years from the date of the item production. The date of production is marked on the case of the item.

  up



Specifications:

Range of operating temperatures, °С
-45.. +100
  Nominal regulating voltage, V
14,0
  Regulating voltage with battery at t°=(25 ± 2) °С and load of alternator 5А, V
14,1 ± 0,1
  Regulating voltage with battery at t°=(25 ± 2) °С in range of alternator load from 3A to 0,9· Imax* , V
14,1 ± 0,2
  Maximum current of output circuit, А
5,0
  Thermal compensation of regulating voltage, mV/°С
-3,0 ± 1,5
  Residual voltage on output "W", not more, V
0,2
  Maximum allowable long-term influence of increased supply voltage, V
18,0
  Maximum allowable influence of increased supply voltage up to 5 min., V
25,0
  Maximum allowable pulse overvoltages in accordance with GOST 28751, V
150,0

  up



Connection diagram:

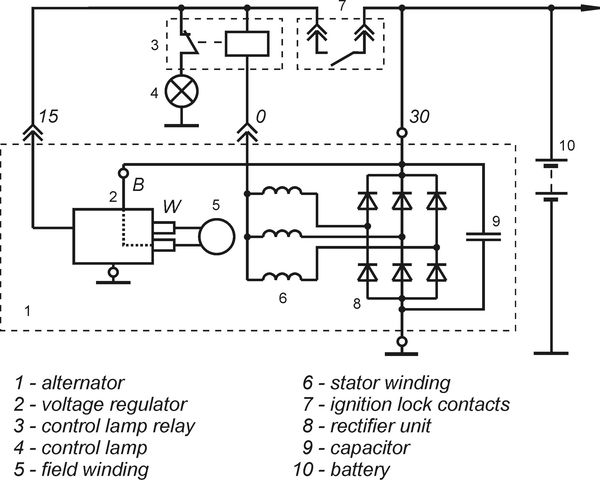

Connection diagram of the voltage regulator JA112V1SCH

  up



Dimensional drawing:

Dimensional drawing of the voltage regulator JA112V1SCH

  up
