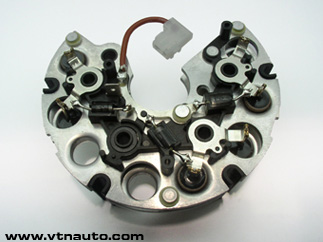

General information:
The restrictive rectifier unit BVO21-150-07 is purposed for
rectification of the three-phase alternating current and limitation
of the impulse of overvoltage in the system of auto electrical
equipment composed of generator set.
Applicability: automobiles VAZ-2108, VAZ-2109, VAZ-2110,
VAZ-2111, VAZ-2112, VAZ-2121 and others with the alternator
9402.3701.
BVO is produced in a single climatic design I2.1 in accordance
with GOST 15150 for internal market and for export. The operating
mode of the alternator - S1 in accordance with GOST 3940.
The rectifier is to be installed directly on the alternator,
where the installation of the rectifier units BVO3-105-01,
BVO21-150-07 or BVO21-150-07 is to be provided with the help
of standard fixture elements.
The warranty period of exploitation is 3 years from the date
of commissioning or from the date of sale in retail commercial
network. The date of production is marked on the case of the
item.
Specifications:
|
Rated voltage,
V |
|
14,0
|
| |
Maximum rectified
current, no more than, A |
120,0
|
| |
Power diodes voltage
drop with to = (25±10)oC and If =100A, no more than,
V |
1,08
|
| |
The limiting voltage
of power rectifier diodes, V |
22,0-24,0
|
| |
The quantity of
power rectifier diodes, pcs |
6
|
| |
The quantity of
additional rectifier diodes, pcs |
3
|
| |
The method of connection
of the stator winding of the alternator |
terminal
|
|

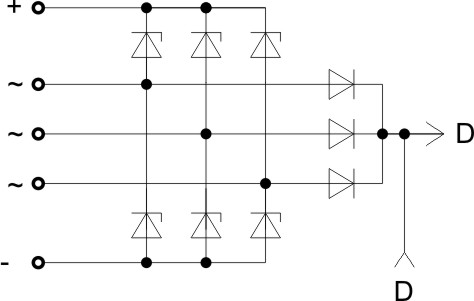

The scheme of restrictive rectifier unit:

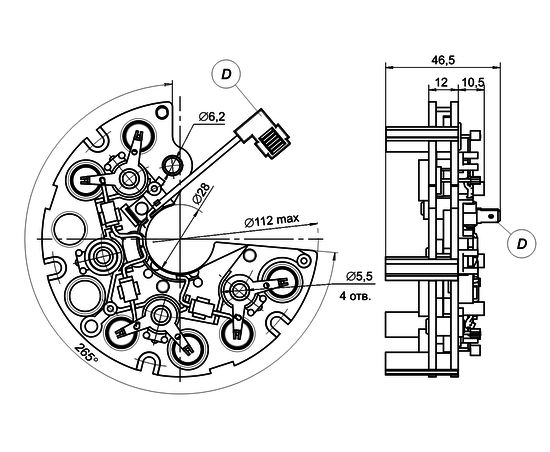

Dimensional drawing:
|
