21-150-14

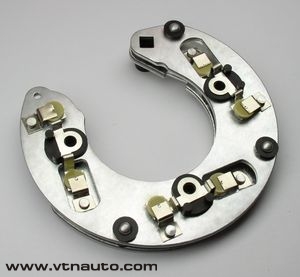

RECTIFIER UNIT BV21-150-14 A
General information
Specifications
Connection diagram
Dimensional drawing



General information:

The restrictive rectifier unit BV21-150-14 version A is purposed for rectification of the three-phase alternating current and in the system of auto electrical equipment composed of generator set.

Applicability: automobiles VAZ-2101, -02, -03, -04, VAZ-2105, -07 Tavria before 1991 year of manufacture with alternator G221, G222 or with analogous one.

BV is produced in a single climatic design 2.1 in accordance with GOST 15150 for internal market and for export. The operating mode of the alternator - S1 in accordance with GOST 3940.

The rectifier unit is mounted directly on the alternator, where the setting of rectifier units BV21-150-14 or BPV56-65-02 with the help of standard fixture elements is stipulated.

The warranty period of exploitation is 3 years from the date of commissioning or from the date of sale in retail commercial network. The date of production is marked on the case of the item.

  up



Specifications:

Nominal voltage, V
14,0
  Maximum rectified current, not less than, A
85,0
  Power diodes voltage drop with t=(25 10) and If =70, not more than, V
1,0
  The quantity of power rectifier diodes, pcs
6
  The quantity of additional rectifier diodes, pcs
-
  The method of connection of the stator winding of the alternator
terminal

  up

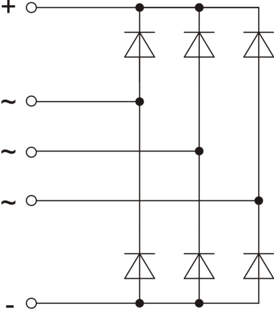

The scheme of restrictive rectifier unit:

The scheme of rectifier unit BV21-150-14 A

  up

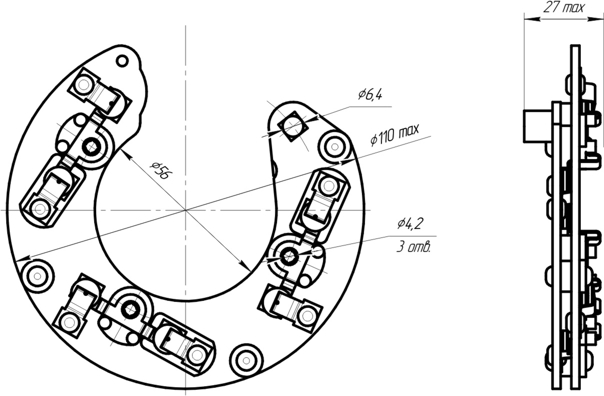

Dimensional drawing:

Dimensional drawing of rectifier unit BV21-150-14 A

  up
