RECTIFIER UNIT BV21-150-14 B

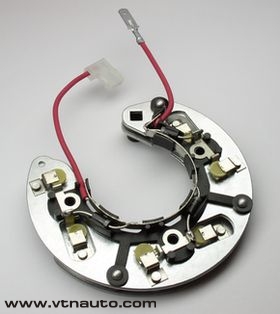

The rectifier unit BV21-150-14 B
General information
Specifications
Connection diagram
Dimensional drawing



General information:

The rectifier unit BV21-150-14 version B is purposed for rectification of the three-phase alternating current and in the system of auto electrical equipment composed of generator set.

Applicability: automobiles VAZ-2108, VAZ-2109, “Oka”, VAZ-2121 and others with alternators 37.3701, G2108E or with analogous one.

BV is produced in a single climatic design О2.1 in accordance with GOST 15150 for internal market and for export. The operating mode of the alternator - S1 in accordance with GOST 3940.

The rectifier unit is mounted directly on the alternator, where the setting of rectifier units BV21-150-14 B or BPV56-65-02B with the help of standard fixture elements is stipulated.

The warranty period of exploitation is 3 years from the date of commissioning or from the date of sale in retail commercial network. The date of production is marked on the case of the item.

  up



Specifications:

Nominal voltage, V
14,0
  Maximum rectified current, not less than, A
85,0
  Power diodes voltage drop with t°=(25 ± 10)°С and If =70А, not more than, V
1,0
  The quantity of power rectifier diodes, pcs
6
  The quantity of additional rectifier diodes, pcs
3
  The method of connection of the stator winding of the alternator
terminal

  up



The scheme of restrictive rectifier unit:

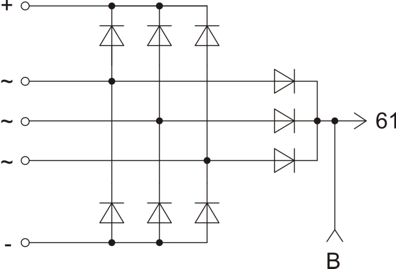

The scheme of rectifier unit BV21-150-14 B

  up



Dimensional drawing:

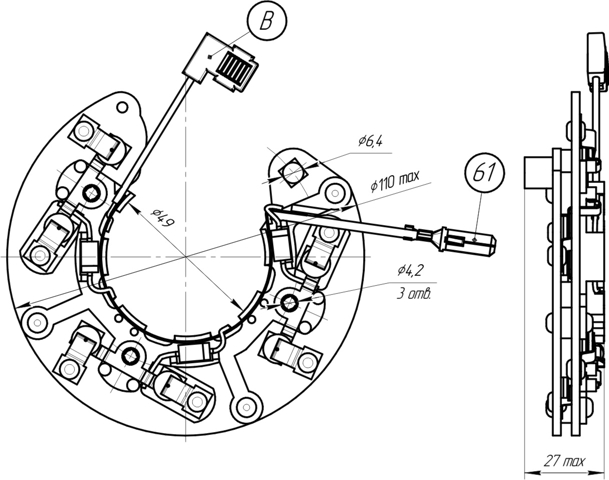

Dimensional drawing of rectifier unit BV21-150-14 B

  up
