General information:

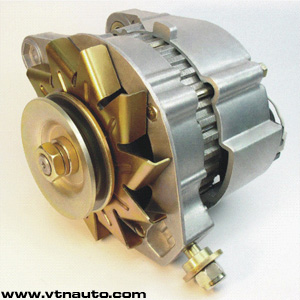

Automobile alternator 2108.3701 is purposed for provision
of the customers with electric power in different mode of
operations of the engine of the automobiles VAZ-2108, VAZ-2109,
VAZ-2104, VAZ-2105, VAZ-2107, "Oka" and others.
Alternator 2108.3701 is performed in traditional constructive
performance. The direction of shaft rotation of the generator
from the drive side is right. Alternator 2108.3701 is produced
in a single climatic design I2.1 in accordance with GOST 15150
for internal market and for export. The operating mode of
the alternator - S1 in accordance with GOST 3940.
The warranty period of exploitation is 3 years from the date
of commissioning or from the date of sale in retail commercial
network. The date of production is marked on the case of the
item.
Specifications:
|
Rated voltage,
V |
|
14,0
|
| |
Maximum rectified current, no more
than, A |
55,0
|
| |
Power capacity,
kW |
0,77
|
| |
Mass, no more than,
kg |
4,6
|
|

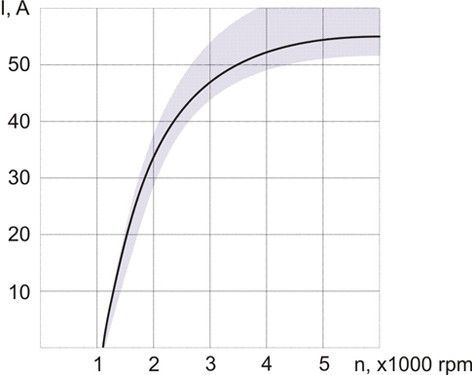

Speed current characteristic of
the generator set:

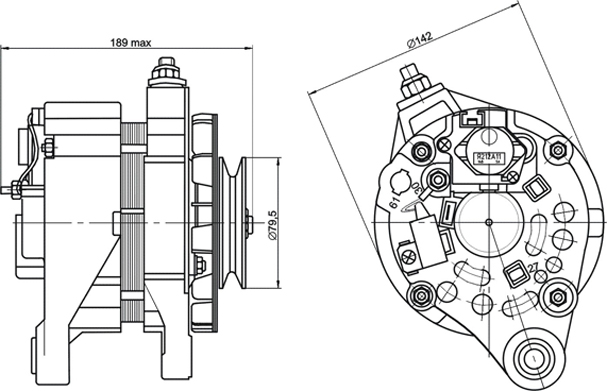

Dimensional drawing:
|
