General information:

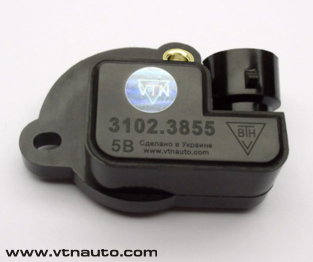

The contactless throttle position sensors (TPS) 3102.3855
is purposed for constant current formation that is proportional
to the throttle`s opening angle of the engine`s fuel injection
system.
Applicability: the automobiles “Chevrolet Lanos”, “Daewoo
Lanos”1.5i/1.6i, “ZAZ Lanos1.5i”, "Daewoo Matiz" 0,8і, "ZAZ Chance"
and others.
The
sensor is produced in a single climatic design О2.1 in accordance with
GOST 15150 for internal market and for export. On extent of protection
against penetration of foreign bodies and water, the item meets design
IP67 in accordance with GOST 14254. An operating mode of the sensor is
continuous nominal S1 in accordance with GOST 3940.
The throttle position sensor is mounted on the throttle body
of the engine`s fuel injection system where the setting of
TPS CTS 06595, 3102.3855 or other analog sensors with the
help of standard screws is stipulated. It is necessary to
be assured that lug for the throttle`s axe flat is parallel
to the line which connects the centers of the fastening holes
of the throttle position sensor during mounting.
The
given item`s resource is not limited by the automobile's mileage. The
warranty exploitation period is 3 years from the date of commissioning
or from the date of sale in retail commercial network. The warranty
obligations of the manufacturer are valid during 4 years from the date
of the item production. The date of production is marked on the item`s
housing.
Specifications:
|
Range of operating temperatures, °C |
|
-40 .. +125
|
|
Nominal supply voltage, V |
5,0
|
|
Maximum consumption current, mA |
20,0
|
|
Full mechanical shaft`s rotation angle, not
less |
121° ± 3°
|
|

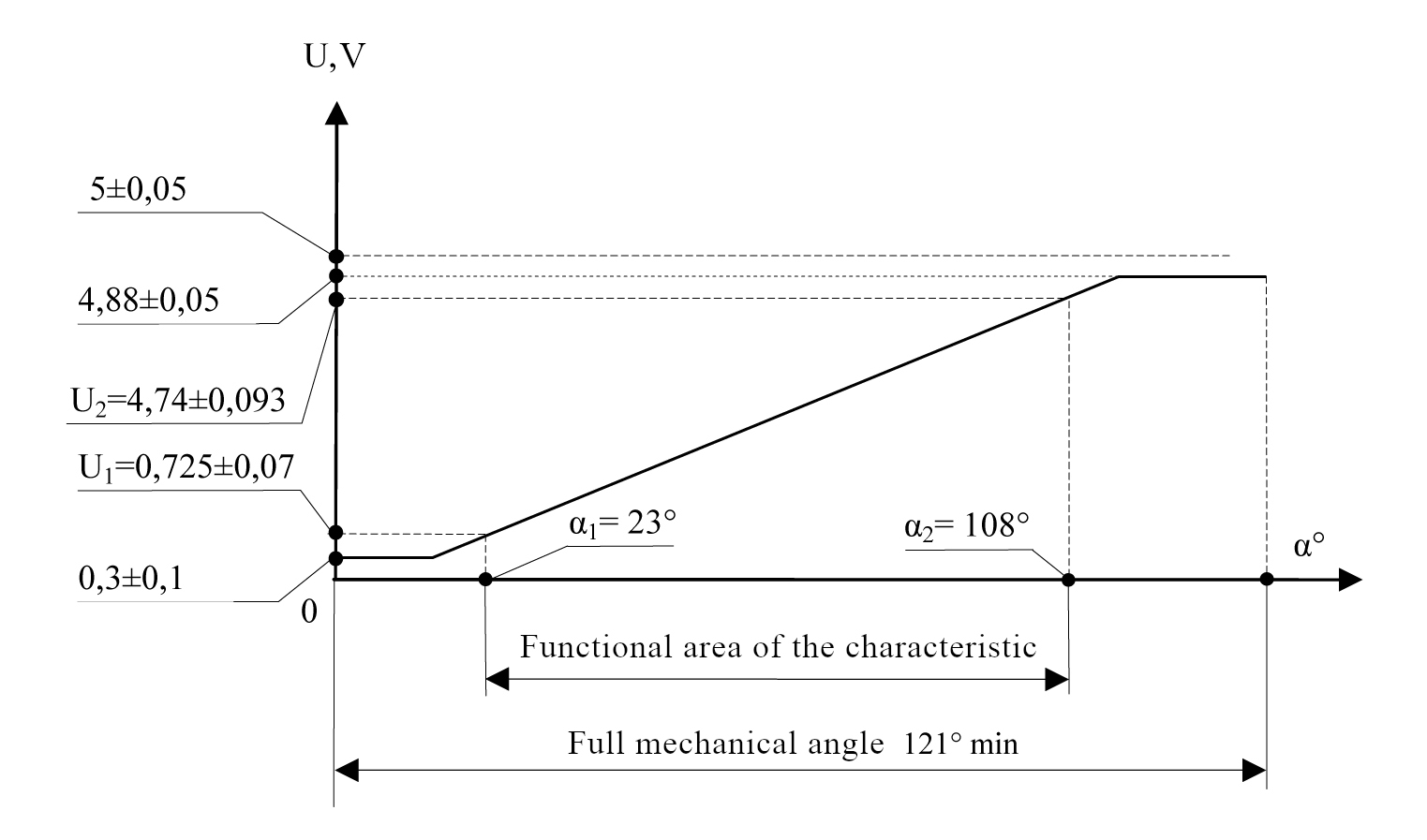

Operating angle range |
23° .. 107°
|
|
Maximum nonlinearity of functional
characteristic in operating angle range, % |
± 1,5
|
|
Functional characteristic error in control
points at Upow=5,0 ± 0,05V mV, not more |
± 40
|
|
Noise voltage, mV, not more |
8
|
|

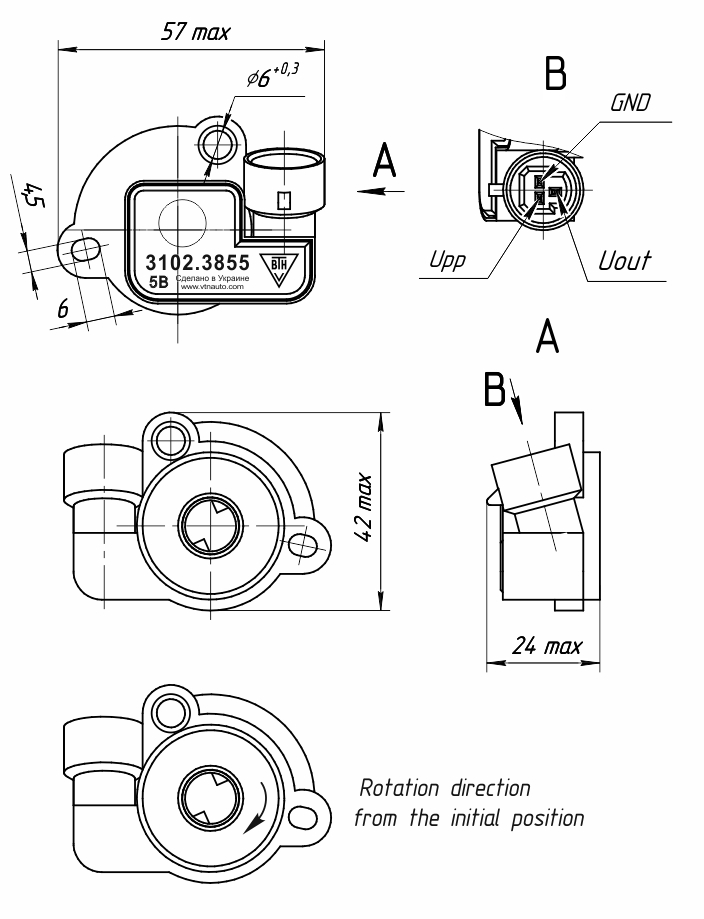

Dimensional drawing:
|
