CONTACTLESS THROTTLE POSITION SENSOR
3202.3855

Modification 2017

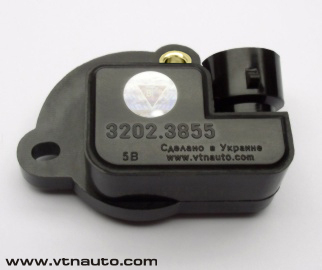

Contactless throttle position sensor 3202.3855
General information
Specifications
Dimensional drawing



General information:

The contactless throttle position sensors (TPS) 3202.3855 and 3202.3855-01 are purposed for constant current formation that is proportional to the throttle`s opening angle of the engine`s fuel injection system.

Applicability: the automobiles Sens, Slavuta, Tavria with injector engines and others.

The sensor is produced in a single climatic design 2.1 in accordance with GOST 15150 for internal market and for export. On extent of protection against penetration of foreign bodies and water, the item meets design IP67 in accordance with GOST 14254. An operating mode of the sensor is continuous nominal S1 in accordance with GOST 3940.

The throttle position sensor is mounted on the throttle body of the engine`s fuel injection system where the setting of TPS 3071-1148200 (39.3855), 3202.3855 or other analogues sensors with the help of standard screws is stipulated. It is necessary to be assured that lug for the throttle`s axe flat is parallel to the line which connects the centers of the fastening holes of the throttle position sensor during mounting.

The given item`s resource is not limited by the automobile's mileage. The warranty exploitation period is 3 years from the date of commissioning or from the date of sale in retail commercial network. The warranty obligations of the manufacturer are valid during 4 years from the date of the item production. The date of production is marked on the item`s housing.
  up



Specifications:

Range of operating temperatures, C
-40 .. +125
  Nominal supply voltage, V
5,0
  Maximum consumption current, mA
20,0
  Full mechanical shaft`s rotation angle, not less
121 3

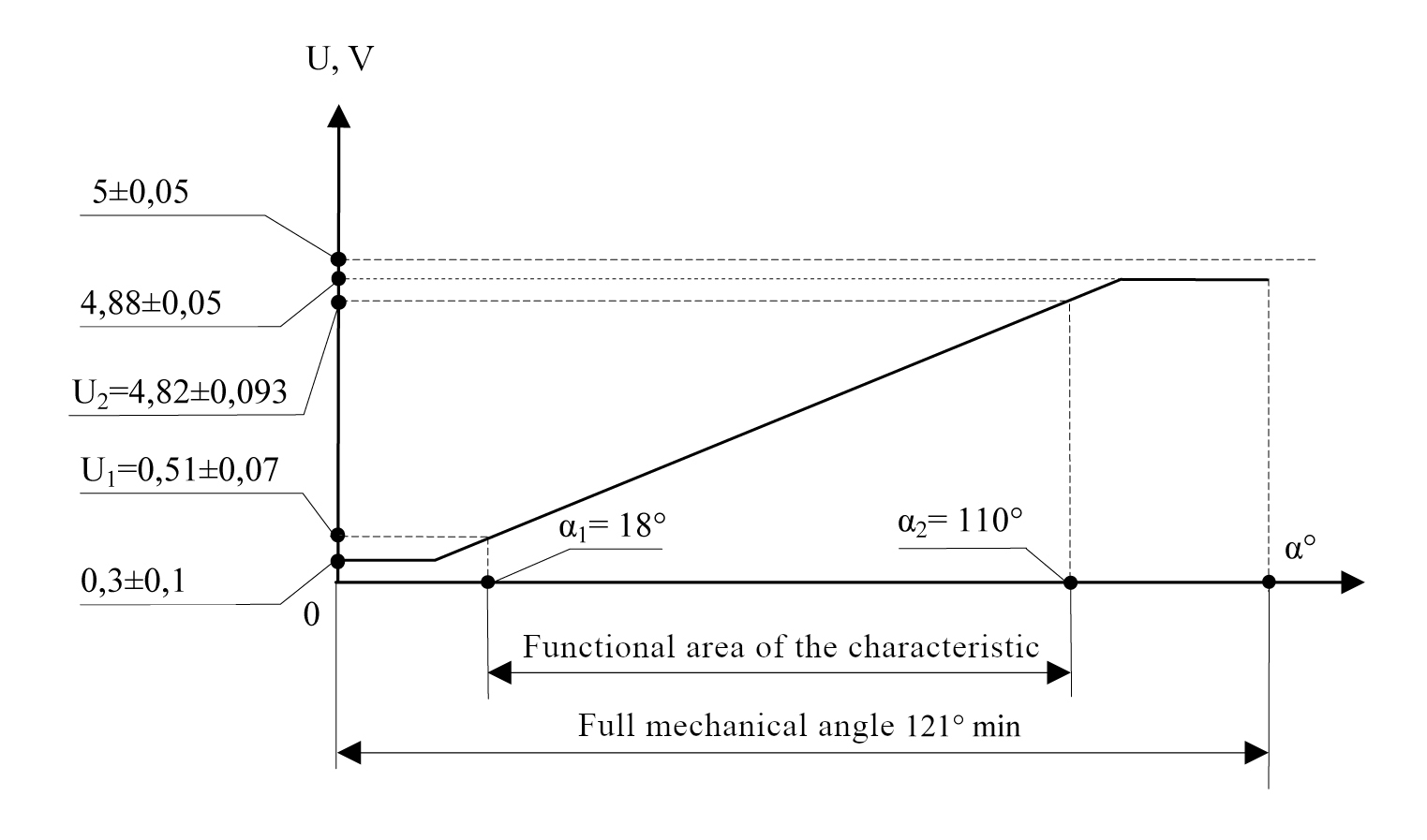

  Operating angle range
18 .. 102
  Maximum nonlinearity of functional characteristic in operating angle range, %
1,5
  Functional characteristic error in control points at Upow=5,0 0,05V mV, not more
40
  Noise voltage, mV, not more
8

  up



Dimensional drawing:

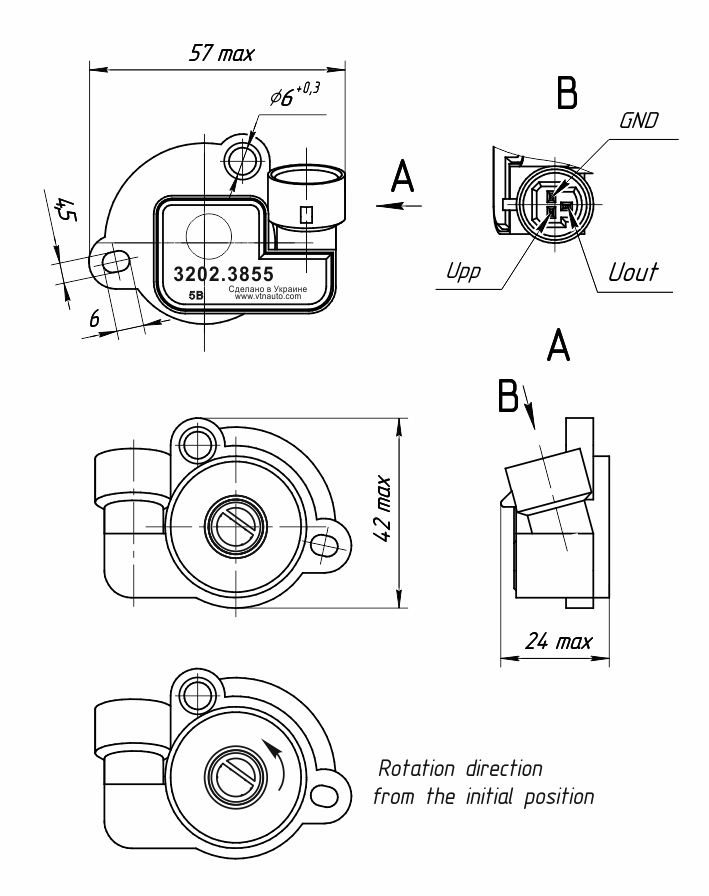

Dimensional drawing of the TPS 3202.3855
