CONTACTLESS THROTTLE POSITION SENSOR
3302.3855

Modification 2017

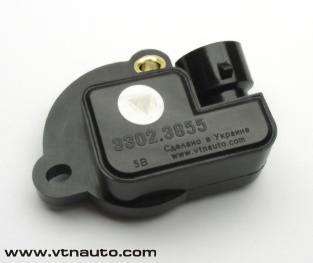

Contactless throttle position sensor 3302.3855
General information
Specifications
Output characteristic
Dimensional drawing



General information:

The contactless throttle position sensors (TPS) 3302.3855 and 3302.3855-01 are purposed for constant current formation that is proportional to the throttle`s opening angle of the engine`s fuel injection system.

Applicability: the automobiles VAZ, equipped by electronic fuel injection system.

The sensor is produced in a single climatic design О2.1 in accordance with GOST 15150 for internal market and for export. On extent of protection against penetration of foreign bodies and water, the item meets design IP67 in accordance with GOST 14254. An operating mode of the sensor is continuous nominal S1 in accordance with GOST 3940.

The throttle position sensor is mounted on the throttle body of the engine`s fuel injection system where the setting of TPS 2112-1148200, 3302.3855 or other similar sensors with the help of standard screws is stipulated. Sensor`s shaft rotation direction - clockwise from the cover side.

The given item`s resource is not limited by the automobile's mileage. The warranty exploitation period is 3 years from the date of commissioning or from the date of sale in retail commercial network. The warranty obligations of the manufacturer are valid during 4 years from the date of the item production. The date of production is marked on the item`s housing.
  up



Specifications:

Range of operating temperatures, °C
-40 .. +125
  Nominal supply voltage, V
5,0
  Maximum consumption current, mA
20,0
  Full mechanical shaft`s rotation angle, not less
121° ± 3°
  Operating angle range
18° .. 110°
  Maximum nonlinearity of functional characteristic in operating angle range, %
± 1,5
  Functional characteristic error in control points at Upow=5,0 ± 0,05V mV, not more
± 40
  Noise voltage, mV, not more
8

  up

Output characteristic:

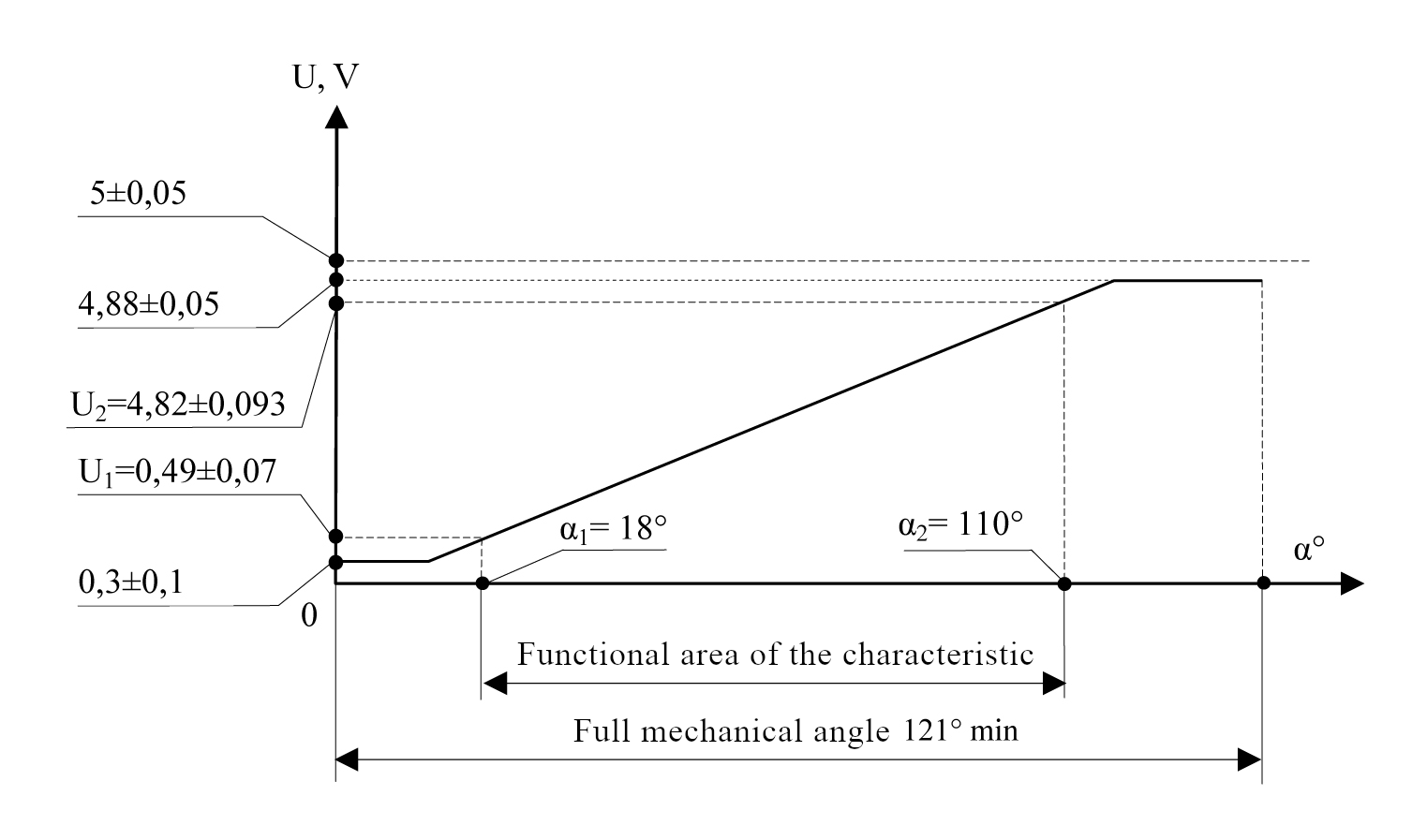

Output characteristic of the contactless throttle position sensor 3302
  up

Dimensional drawing:

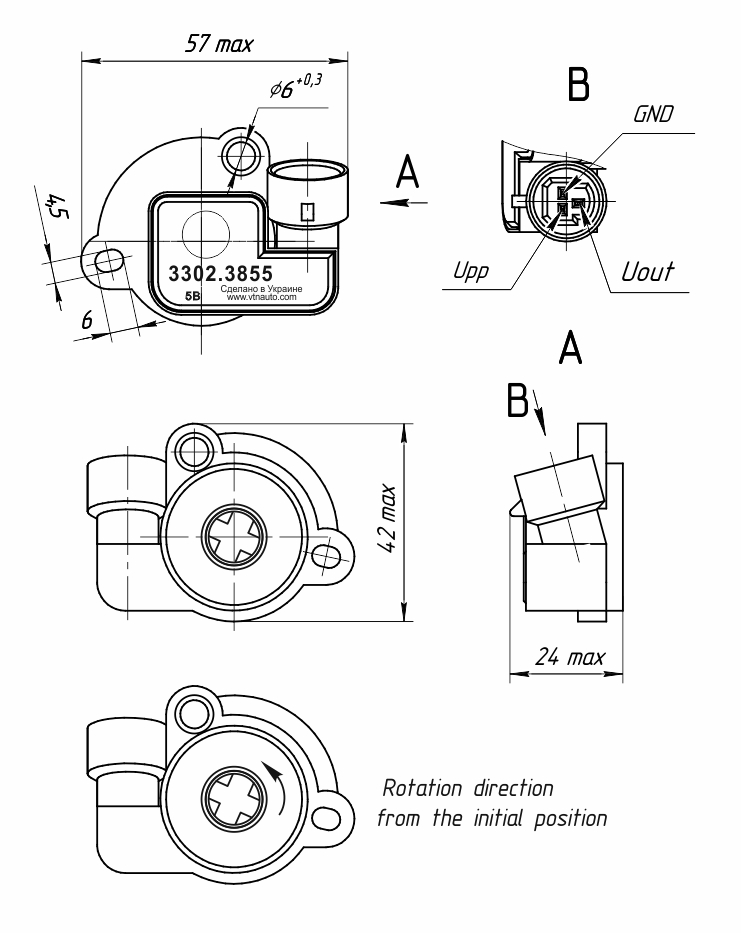

Dimensional drawing of the TPS 3302.3855
