General information:

The voltage regulator 9422.3702 is purposed for voltage maintenance of the onboard vehicle network in predetermined limits in all system operation modes of electrical equipment at change of the rotation frequency of the alternator rotor, electrical load and environment temperature.

Applicability: automobiles with the alternator 97T.3701 and other alternators of the row 94хх.3701 with the minor retrofiting of the alternator`s cap. It is possible to apply the regulator composed of other alternators with analogical switching circuit and Zener diodes in rectifier unit.

The distinctive feature of the given item is presence of the indication function of voltage excess of onboard vehicle network more than 15 V. At the exceeded voltage of the onboard vehicle network the regulator ensures indication of this mode by blinking with the frequency 2 Hz of a standard indicator lamp controlling the charging of battery on the instrument cluster.

The voltage regulator 9422.3702 is the regulator of a new generation. Due to usage of the modern powerful field-effect transistor as an output switch, the highest parameters of the current velocity characteristic are reached, the power losses are sharply lowered and the item reliability as a whole enlarged.

The regulator is produced in a single climatic design О2.1 in accordance with GOST 15150 for internal market and for export. On protection degree against penetration of foreign bodies and water, the item meets design IP68 in accordance with GOST 14254. All electrocontact connecting elements of the regulator are made of brass rolling with a galvanic cover that guarantees reliability of the electrical connections during all service period. An operating mode of the regulator is S1 in accordance with GOST 3940.

The warranty period of exploitation is 3 years from the date of commissioning or from the date of sale in retail commercial network. The warranty obligations of the manufacturer are valid during 4 years from the date of the item production. The date of production is marked on the case of the item.

Specifications:

Range of operating temperatures, °С -45 .. +100   Nominal regulating voltage, V 14,0   Regulating voltage with battery at t°=(25 ± 2) °С and load of alternator 3А, V 14,0 ± 0,1   Regulating voltage with battery at t°=(25 ± 2) °С in range of alternator load from 3A to Imax* , V 14,0 ± 0,15   Maximum current of output circuit: standard design / as agreed with manufacturer, A 5,0 / 7,0   Thermal compensation of regulating voltage, mV/°С -4,5 ± 1,5   Residual voltage on output "DF": maximal / typical, V 0,15 / 0,12   Threshold of indication actuation of increased voltage, V 15,0 .. 15,5   Frequence of indication signal, Hz 2,0 ± 0,3   Maximum allowable long-term influence of increased supply voltage, V 18,0   Maximum allowable influence of increased supply voltage up to 5 min., V 25,0   Maximum allowable pulse overvoltages in accordance with GOST 28751, V 200,0

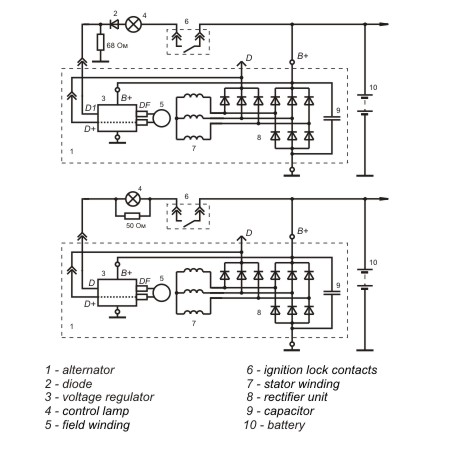

Connection diagram:

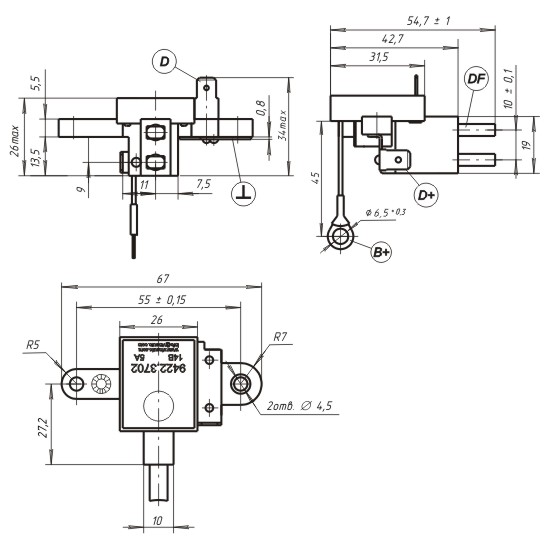

Dimensional drawing:
