MULTIFUNCTIONAL VOLTAGE REGULATOR 9444.3702



Multifunctional voltage  regulator  9444.3702
General information
Specifications
Connection diagram
Dimensional drawing



General information:

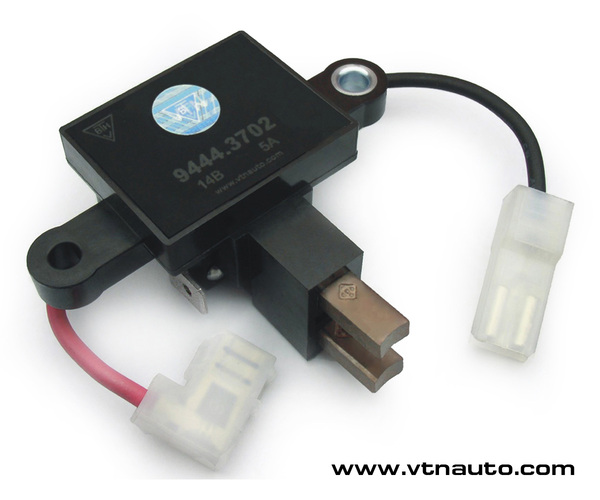

The multifunctional voltage regulator 9444.3702 is purposed for voltage maintenance of the onboard vehicle network in predetermined limits in all system operation modes of electrical equipment at change of the rotation frequency of the alternator rotor, electrical load and environment temperature.

Applicability: automobiles VAZ-2110, VAZ-2111, VAZ-2112, with the alternator 9402.3701-03, VAZ-2123 ôChevrolet Nivaö with the alternator 9402.3701-04 and others.

Multifunctional voltage regulator 9444.3702 ensure complete switching-off of the alternatorĺs field winding from the onboard network, thus increasing the reliability and safety of the vehicle power-supply system.

The regulator 9444.3702 has a reduced and increased voltage indication function of on-board automobile network and also alternator's low phase voltage. The increased voltage indication is realized by flashing and other modes realization by glowing of the indicator lamp controlling the battery loading on the instrument cluster. The item ensures smooth load current build-up during 2-3s at the rotation frequency of the alternator's rotor up to 3000 rpm. The multifunctional voltage 9444.3702 has the protection function against short circuit in the output and indicator circuit.

The given regulator is created with the usage of modern microcontroller and has no equal for some key parameters among serially produced items The voltage control and regulation are performed directly on the alternatorĺs output terminal - on this principle all power supply diagrams of modern foreign automobiles of high class are built. Additional diodes in the rectifier unit are absent, the control of alternatorĺs start-up and control of its rotation frequency is made directly on one of the output power control windings.

The regulator is produced in a single climatic design ╬2.1 in accordance with GOST 15150 for internal market and for export. On protection degree against penetration of foreign bodies and water, the item meets design IP67 in accordance with GOST 14254. An operating mode of the regulator is S1 in accordance with GOST 3940.

The regulator is mounted with the help of standard screws directly on the alternator where the setting of the regulators 7931.3702╚4, 844.3702, 845.3702 or 9444.3702 is stipulated.

The warranty period of exploitation is 3 years from the date of commissioning or from the date of sale in retail commercial network. The warranty obligations of the manufacturer are valid during 4 years from the date of the item production. The date of production is marked on the item housing.
