General information:
The thermostabilization sensor TM108M 3808000 -11G, -12G complete with the external heating
element is purposed to maintain in the predetermined range the vehicles units' temperature at the
environment temperature drop.
The sensor is produced in a single climatic design U in accordance with GOST 15150 for internal
market and for export. The sensor is designed on a two-wire power circuit, the item housing is
isolated from the electric circuit. An operating mode of the thermostabilization sensor is S1 in
accordance with GOST 3940.
The thermostabilization sensor is mounted on the standard place in the housing part according
to the design and technological documentation.
The warranty period of exploitation is 3 years from the date of commissioning or from the
date of sale in retail commercial network. The warranty obligations of the manufacturer are
valid during 4 years from the date of the item production.
Specifications:
| |
Parameter
|
|
TM108M 3808000-11G
|
|
TM108M 3808000-12G
|
 |
|
|
|
| |
Nominal supply voltage,
V |
24
|
12
|
| |
Commutating current
of active load, А |
5
|
6
|
| |
Switching-on temperature,
°С |
10 ± 3
|
10 ± 3
|
| |
Switching-off temperature,
°С |
20 ± 3
|
20 ± 3
|
|

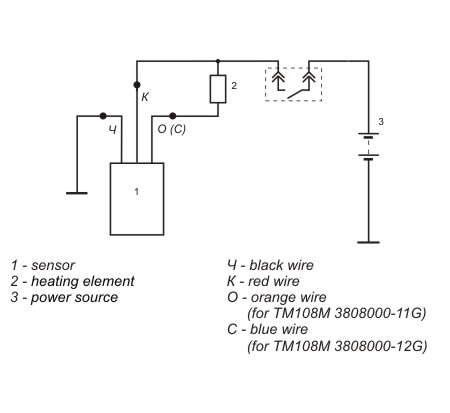

Connection diagram:
Dimensional drawing:
|
